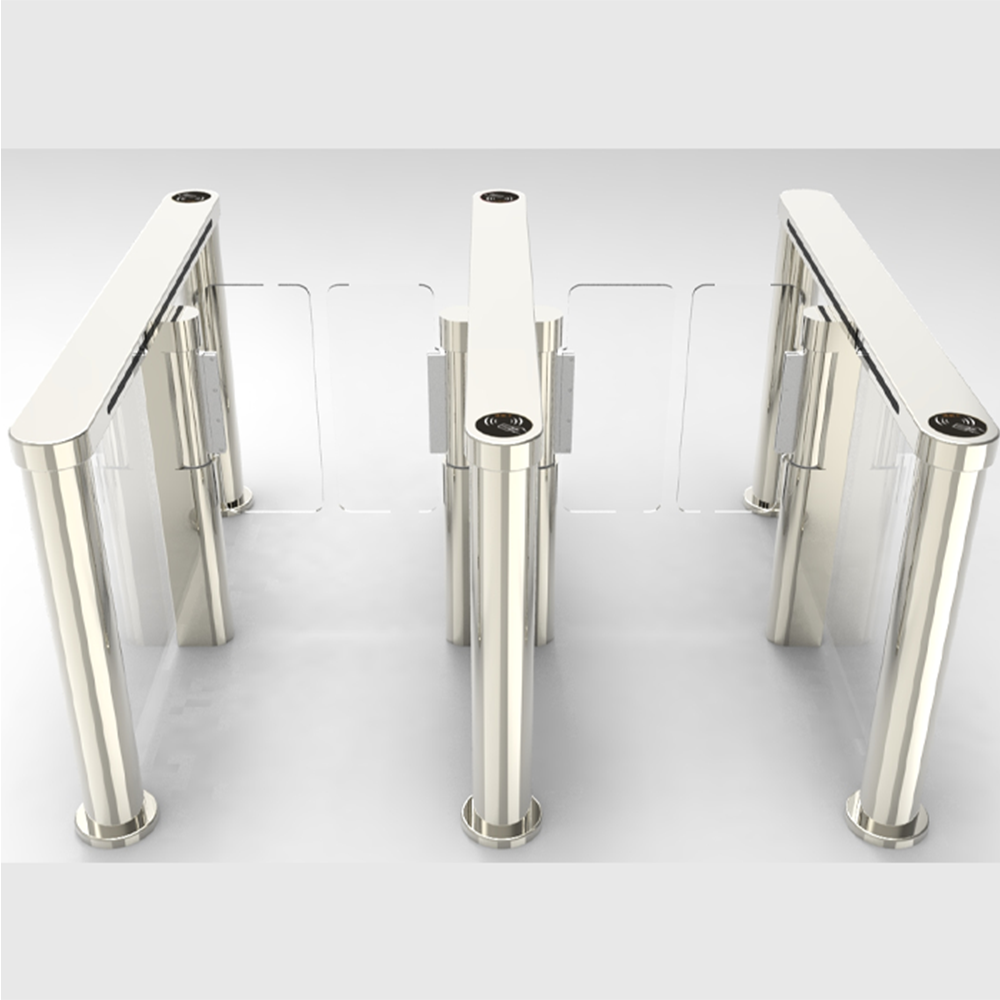

Access Control Automatic Swing Barrier Turnstile Gate
Model No- TP-3601
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
All of our products carry a 1 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanners, and face recognition cameras. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
- Size: 1400*130*980 mm (can be customized)
- Lane Width: 600 mm (Standard) 900 mm( Handicapped)
- Arm Material: Acrylic
- Passing speed: 40 person/min
- Power supply: 110V/220V 50/60Hz
- Brushless motor
- Gate Open Signal: Dry Contact/ Relay
- Driving Motor: 24V
- Weight: 70 kg/pcs
- In the Anti-hit mechanism, automatically reset when encountering force impact
- Casing Material: 304 stainless steel
- Reliability of the mechanism: 3 million, no-fault
- LED lights on arms are available
- The standard side panel is glass
- LED on the sideboard is optional,
- Working Direction: Bidirectional/Single directional
- Emergency situation: open automatically when the electricity is cut off. Backup battery self-provided
- Humidity: ≤90%
- Communication distance: ≤1200 m
- Communication interface: RS485
- Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
- Time needed for opening: 0.2 s
- Working Environment: Indoors
- Application range: Community, Factory, Construction site, School, Place of the resort, etc
FEATURES
- Modular reader panel – in-time market response
- Servomotor – faster opening speed
- 10 Pairs of infrared sensors for stronger tailgate detection
- SUS304 stainless steel casing
- Higher durability for longer product life cycle
- Easy switch, easy installation – RFID, fingerprint, face, etc.
- Bi-directional operation control
- LED passage indicator in both directions
- Convenient installation and maintenance
- Various optional panels
- Emergency mode allows free access in power failures or emergency
Performance
In order to improve the efficiency of pedestrian access management and user experience, we adopted a new type of servomotor which makes the speed gates have a faster opening speed and lower noise. The test results show that the opening speed is less than 1.2 seconds with the stand barrier panels if assembled the mid-height barrier panels instead, opening speed will be less than 0.8 seconds. The infrared sensors have increased to 10 pairs, which is 160% more than other similar products in order to provide more accurate logical judgment.
Quality
The casing is mostly made of superior SS304 stainless steel for its remarkably high durability. The barrier panels are made of acrylic and have better aging resistance and impact resistance. From raw material procurement to production, strict quality control and inspection system will be applied.
Safety
Barriers unlock automatically during power outages.
The ergonomic design makes operation fast & simple for users.
